EMTech Products Product Catalogue

EMTech Class 4 Products

Conduit Pipe

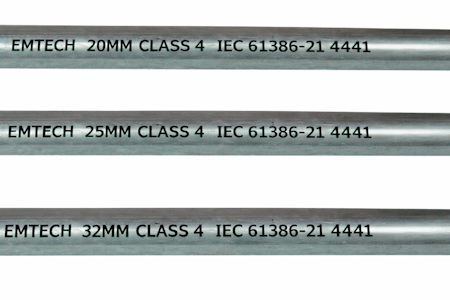

EMTECH Brand BS4568 / IEC61386 Class 4 Conduit

EMTECH BS4568 / IEC61386 Class 4 Galvanised Steel Conduit

High-quality BS4568/IEC61386 conduit pipes are engineered for durability and are available with customisable colour options to support clear identification and design flexibility. Epoxy powder-coated conduits and accessories are offered to meet the requirements of a wide range of M&E service applications.

Technical Specification Matrix

EMTECH® Brand BS4568 / IEC61386 Class 4 Hot Dipped Galvanised Steel Conduit

Nominal Size (mm) Outer Diameter (mm) Wall Thickness ± (mm) Weight per Length (kg/length) Standard Length
Min Max
20 19.7 20.0 1.6 ± 0.15 ± 2.90 3.75 meters
25 24.6 25.0 1.6 ± 0.15 ± 3.70 3.75 meters
32 31.6 32.0 1.6 ± 0.15 ± 4.80 3.75 meters
* Other lengths are available upon request.

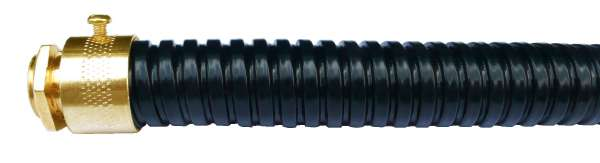

EMTECH Brand Class 4 Flexible Conduit

EMTECH Brand Class 4 Flexible Conduit

PVC Coated Galvanized Flexible conduit

  • Water resistant, with maximum protection against most liquids and solid particles
  • High temperature heat resistance and self extinguishing black pvc sheathing
  • Manufactured to withstand vibrations of installations and equipment
  • Wide range of conduit sizes

Flexible Conduit Specifications

PVC-Coated Galvanized Series • Water & Temperature Resistant

Catalogue Number Outgoing G.I. Conduit Size (inch) Length per Coil (feet)
PCF16 ⅝” 100 ft
PCF20 ¾” 100 ft
PCF25 1” 100 ft
PCF32 1¼” 50 ft
PCF38 1½” 50 ft
PCF50 2” 50 ft
PCF63 2½” 30 ft
PCF75 3” 30 ft
PCF100 4” 30 ft

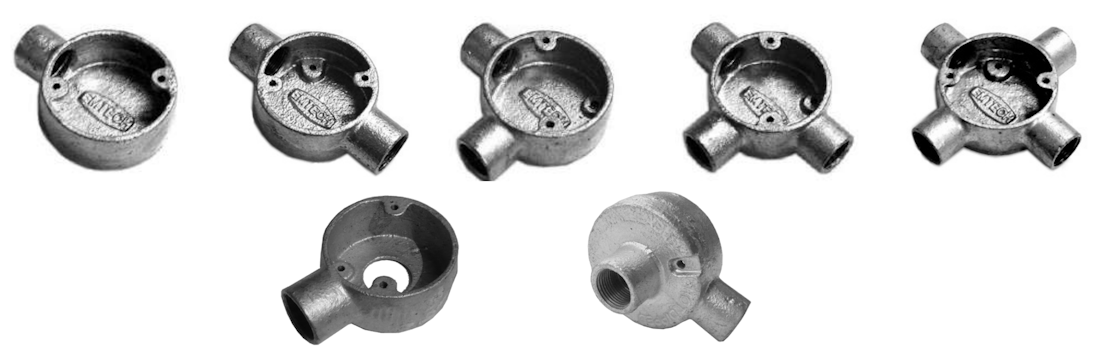

Conduit Box

Conduit Box

Class 4 Conduit Box

Class 4 Conduit Box Models

Finish: Hot-Dipped Galvanized | Fixing Centre: 50.8mm ± 0.5mm

Box Type 20mm Code 25mm Code 32mm Code
Terminal / 1 Way CF-1W-20-E CF-1W-25-E CF-1W-32-E
Through / 2 Way CF-2W-20-E CF-2W-25-E CF-2W-32-E
Angle CF-AN-20-E CF-AN-25-E CF-AN-32-E
Tee / 3 Way CF-3W-20-E CF-3W-25-E CF-3W-32-E
Cross / 4 Way CF-4W-20-E CF-4W-25-E CF-4W-32-E
Terminal / 1 Way with Hole CF-1W-H-20-E CF-1W-H-25-E CF-1W-H-32-E
Terminal / 1 Way with Back Outlet CF-1W-BO-20-E CF-1W-BO-25-E N/A

Knock-Out (KO) Boxes

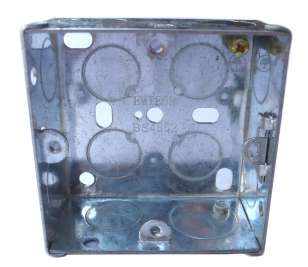

Standard 1-gang KO box
Standard Range (BS4662)

Steel Switch & Socket Box - 1 Gang

Precision-stamped steel box configuration equipped with a pre-tapped earthing hole located at the structural base.

Model Code KO1E
Material Matrix Galvanized Steel Sheet
Dimensions (L×W×D) 75 x 75 x 35 mm
Fixing Centre 60.3 mm (Standard BS Size)

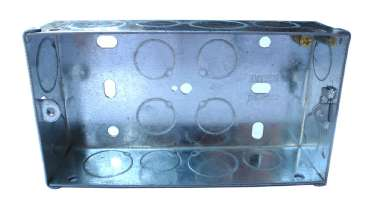

Standard 2-gang KO box
Standard Range (BS4662)

Steel Switch & Socket Box - 2 Gang

Extended-width variant designed to seamlessly accommodate double-gang wiring devices and standard terminal accessories.

Model Code KO2E
Material Matrix Galvanized Steel Sheet
Dimensions (L×W×D) 135 x 75 x 35 mm
Fixing Centre 120.6 mm (Standard BS Size)
1-gang hot dipped KO box
Civil Defence Rated

1G Hot Dipped CD Shelter Box

Reinforced thick-gauge switch box specifically treated to meet robust blast-resistant infrastructure safety parameters.

Model Code KO1-CD-HD
Material Matrix Thick-Gauge Steel Sheet
Protective Finish Hot Dipped Galvanized (HDG)
Dimensions (L×W×D) 75 x 75 x 35 mm
2-gang hot dipped KO box
Civil Defence Rated

2G Hot Dipped CD Shelter Box

Heavy-duty double-gang outlet shell engineered with dynamic zinc coverage protection for defensive structural utilities.

Model Code KO2-CD-HD
Material Matrix Thick-Gauge Steel Sheet
Protective Finish Hot Dipped Galvanized (HDG)
Dimensions (L×W×D) 135 x 75 x 35 mm
