Lipko Cable Support Systems

Industrial heavy framing raceways engineered to carry high-weight cabling bundles over large spans.

Cable Trunking

   Steel Surface Test Report    Coating Test Report
Lipko SS249 CABLE TRUNKING

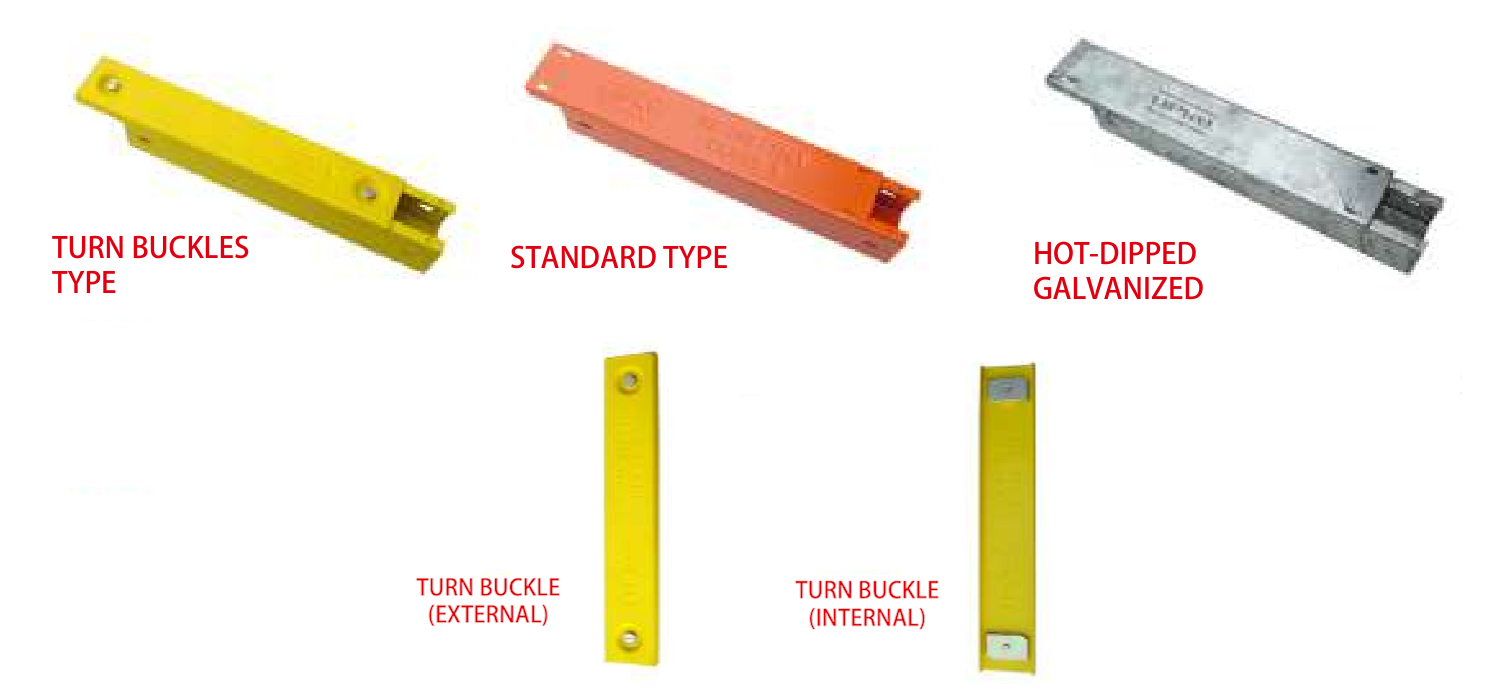

SS249 CABLE TRUNKING

LIPKO SS249 cable trunking is manufactured from high quality electro galvanized steel sheet to JIS 3313 SECC (Phosphated) and zinc coated on each side. It is finished with epoxy powder coating. Minimum film thickness 45 Micron. Both the body and the cover are press brake formed to a close tolerance to facilitate easy assembly. Each length is supplied complete with a coupling joint, copper earth continuity link, self tapping screws, bolts and nuts.

SS249 Cable Trunking Dimensions

Compliant with Singapore Standard SS249 | Surface-Mounted Metallic Containment

Model Code Sizing Dimensions Material Thickness (mm)
Metric (mm) Imperial (Inches) Trunking Body Overlapping Cover
ST-21 50 X 25 2 X 1 1.0 1.0
ST-22 50 X 50 2 X 2 1.0 1.0
ST-32 75 X 50 3 X 2 1.2 1.2
ST-42 100 X 50 4 X 2 1.2 1.2
ST-62 150 X 50 6 X 2 1.4 1.2
ST-82 200 X 50 8 X 2 1.6 1.4
ST-102 250 X 50 10 X 2 1.6 1.4
ST-122 300 X 50 12 X 2 1.6 1.6
ST-142 350 X 50 14 X 2 1.6 1.6
ST-43 100 X 75 4 X 3 1.2 1.2
ST-63 150 X 75 6 X 3 1.4 1.2
ST-83 200 X 75 8 X 3 1.6 1.4
ST-123 300 X 75 12 X 3 1.6 1.6
ST-44 100 X 100 4 X 4 1.4 1.2
ST-64 150 X 100 6 X 4 1.4 1.2
ST-84 200 X 100 8 X 4 1.6 1.4
ST-124 300 X 100 12 X 4 1.6 1.6
ST-66 150 X 150 6 X 6 1.4 1.2
ST-86 200 X 150 8 X 6 1.6 1.4
* Standard Length: 2.44m (8 ft) • Finishes: Epoxy Coated (ST), Hot Dipped Galvanized (HDST) Each length includes: 1x coupling joint, 1x copper earth link, self-tapping screws, bolts/nuts.
STANDARD CABLE TRUNKING

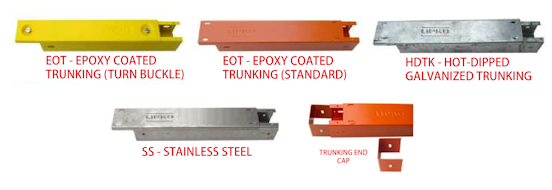

STANDARD CABLE TRUNKING

LIPKO standard cable trunking are supplied with inturned flanged body and overlapping cover firmly by electro galvanized self tapping screws giving maximum rigidity throughout its full length. Both the body and the cover are press brake formed to a close tolerance to facilitate easy assembly.

Multi compartment cable trunking is available upon request. Each length is supplied complete with a coupling joint, copper earth continuity link, self tapping screws, bolts and nuts.

LIPKO Standard Cable Trunking

Features: Inturned flanged body & overlapping cover secured by self-tapping screws for maximum rigidity

Sizing Dimensions 20 GAUGE Code 18 GAUGE Code 16 GAUGE Code
Metric (mm) Imperial (Inches) Code/Size/Thickness Code/Size/Thickness Code/Size/Thickness
50 X 25 2 X 1 EOT/21/20 EOT/21/18 EOT/21/16
50 X 50 2 X 2 EOT/22/20 EOT/22/18 EOT/22/16
75 X 50 3 X 2 EOT/32/20 EOT/32/18 EOT/32/16
100 X 50 4 X 2 EOT/42/20 EOT/42/18 EOT/42/16
100 X 75 4 X 3 EOT/43/20 EOT/43/18 EOT/43/16
100 X 100 4 X 4 EOT/44/20 EOT/44/18 EOT/44/16
150 X 50 6 X 2 EOT/62/20 EOT/62/18 EOT/62/16
150 X 75 6 X 3 EOT/63/20 EOT/63/18 EOT/63/16
150 X 100 6 X 4 EOT/64/20 EOT/64/18 EOT/64/16
150 X 150 6 X 6 N/A EOT/66/18 EOT/66/16
200 X 50 8 X 2 N/A EOT/82/18 EOT/82/16
200 X 75 8 X 3 N/A EOT/83/18 EOT/83/16
200 X 100 8 X 4 N/A EOT/84/18 EOT/84/16
200 X 150 8 X 6 N/A EOT/86/18 EOT/86/16
300 X 75 12 X 3 N/A EOT/123/18 EOT/123/16
300 X 100 12 X 4 N/A EOT/124/18 EOT/124/16
* Standard Length: 2.44m or 8 ft | Thickness Options: 0.8mm to 1.6mm Available Finishes: Epoxy Coated (EOT), Hot Dipped Galvanized (HDTK), Stainless Steel 304/316 (304TK/316TK), Plain Galvanized (PGT)

Cable Ladders

Standard Cable Ladder

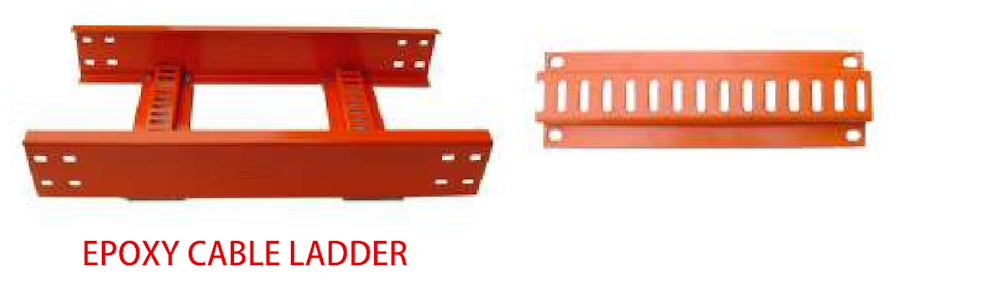

Standard Cable Ladder

Cable ladder are the most popular format for cable support systems as they provide an attractive combination of strength and long service life. LIPKO Cable ladder is designed to withstand considerable cable loads and provides an economic solution to cabling management. It is able to support heavy cable or pipe loads across long spans thus optimizing the economic usage of the support structure. Each length is supplied complete with a pair of joint plates, copper earth continuity link, bolts and nuts.


Available Finishes Code
Epoxy CoatedECL
Hot Dipped GalvanizedHDCL
Stainless Steel 304 / 316304CL / 316CL
Standard Parameters
Standard Length2.44m or 8 ft
Flange Height100mm - 150mm
Thickness2.0mm

Cable Ladder Sizes

Heavy Gauge Plate Construction • Thickness: 2.0mm

Size Dimensions ECL Code HDCL Code SSCL Code
Width (mm) Width (Inches) Epoxy Coated Hot Dipped Galv. Stainless Steel
150 6 ECL/6/ HDCL/6/ SSCL/6/
200 8 ECL/8/ HDCL/8/ SSCL/8/
300 12 ECL/12/ HDCL/12/ SSCL/12/
400 16 ECL/16/ HDCL/16/ SSCL/16/
450 18 ECL/18/ HDCL/18/ SSCL/18/
500 20 ECL/20/ HDCL/20/ SSCL/20/
600 24 ECL/24/ HDCL/24/ SSCL/24/
700 28 ECL/28/ HDCL/28/ SSCL/28/
750 30 ECL/30/ HDCL/30/ SSCL/30/

Cable Trays

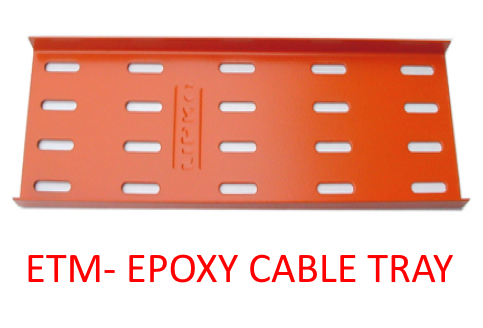

Standard Cable Tray

Standard Flange Cable Tray

Cable trays are the most popular format for cable support systems as they provide an attractive combination of strength and long service life. LIPKO Cable trays are designed to withstand considerable cable loads and provides an economic solution to cabling management. They are able to support heavy cable or pipe loads across long spans thus optimizing the economic usage of the support structure. Each length is supplied complete with a pair of joint plates, copper earth continuity link, bolts and nuts.


Available Finishes Code
Epoxy CoatedETM
Hot Dipped GalvanizedHDTM
Stainless Steel 304 / 316304TM / 316TM
Standard Parameters
Standard Length2.44m or 8 ft
Width Range50mm - 1000mm
Flange Height / Thickness12mm - 25mm / 0.8mm - 2.0mm

Standard Flange Sizes

Each length is supplied complete with a joint plate, copper earth continuity link, bolts and nuts.

Size Dimensions 20 GAUGE 18 GAUGE 16 GAUGE 14 GAUGE
Width (mm) Inches CODE/SIZE/THICKNESS CODE/SIZE/THICKNESS CODE/SIZE/THICKNESS CODE/SIZE/THICKNESS
502 ETM/2/20ETM/2/18ETM/2/16ETM/2/14
753 ETM/3/20ETM/3/18ETM/3/16ETM/3/14
1004 ETM/4/20ETM/4/18ETM/4/16ETM/4/14
1506 ETM/6/20ETM/6/18ETM/6/16ETM/6/14
2008 ETM/8/20ETM/8/18ETM/8/16ETM/8/14
25010 ETM/10/20ETM/10/18ETM/10/16ETM/10/14
30012 ETM/12/20ETM/12/18ETM/12/16ETM/12/14
40016 N/AETM/16/18ETM/16/16ETM/16/14
45018 N/AN/AETM/18/16ETM/18/14
500 20 N/A N/A ETM/20/16 ETM/20/14
600 24 N/A N/A ETM/24/16 ETM/24/14
750 30 N/A N/A ETM/30/16 ETM/30/14
800 32 N/A N/A ETM/32/16 ETM/32/14
900 36 N/A N/A ETM/36/16 ETM/36/14
1000 40 N/A N/A ETM/40/16 ETM/40/14

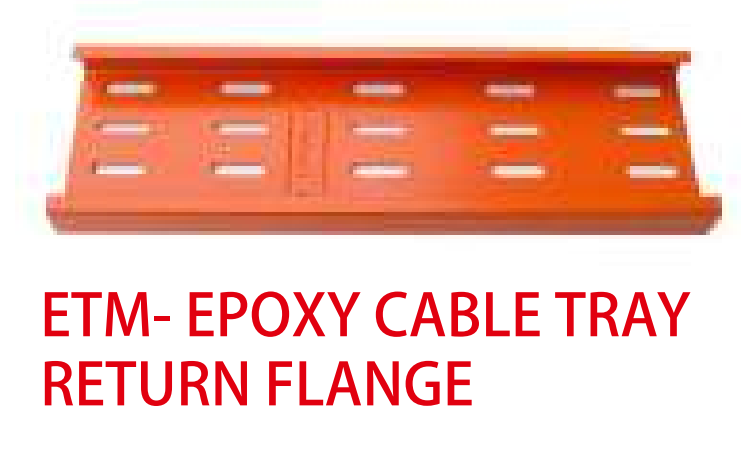

STANDARD RETURN FLANGE CABLE TRAY

Standard Return Flange Cable Tray

LIPKO Standard return flange cable tray is manufactured from heavy gauge steel plates with a 25mm flange height and 9mm returned flange for increased rigidity and strength to support heavy cable loads. Other flange height are also available upon requests. Suitable for use in installation of heavy cable. Each length is supplied complete with a joint plate, copper earth continuity link, bolts and nuts.


Available Finishes Code
Epoxy Coated (Return Flange)ETMR
Hot Dipped GalvanizedHDTMR
Stainless Steel 304 / 316304TMR / 316TMR
Standard Parameters
Standard Length2.44m or 8 ft
Width Range50mm - 1000mm
Flange Height / Thickness25mm (9mm return) / 1.2mm - 2.0mm

Return Flange Sizes

Suitable for use in installation of heavy cables. Supplied complete with a joint plate, earth continuity link, bolts and nuts.

Size Dimensions 18 GAUGE 16 GAUGE 14 GAUGE
Width (mm) Inches CODE/SIZE/THICKNESS CODE/SIZE/THICKNESS CODE/SIZE/THICKNESS
502 ETMR/2/18ETMR/2/16ETMR/2/14
753 ETMR/3/18ETMR/3/16ETMR/3/14
1004 ETMR/4/18ETMR/4/16ETMR/4/14
1506 ETMR/6/18ETMR/6/16ETMR/6/14
2008 ETMR/8/18ETMR/8/16ETMR/8/14
25010 ETMR/10/18ETMR/10/16ETMR/10/14
30012 ETMR/12/18ETMR/12/16ETMR/12/14
40016 N/AETMR/16/16ETMR/16/14
45018 N/AETMR/18/16ETMR/18/14
50020 N/AETMR/20/16ETMR/20/14
600 24 N/A ETMR/24/16 ETMR/24/14
750 30 N/A N/A ETMR/30/14
800 32 N/A N/A ETMR/32/14
900 36 N/A N/A ETMR/36/14
1000 40 N/A N/A ETMR/40/14
